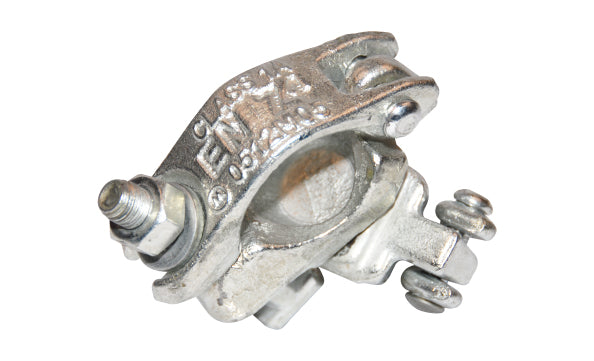

Drop Forged Swivel Coupler

The Drop Forged Swivel Coupler is a load-bearing fitting designed to connect 2 standard
Scaffold Tubes (48.3mm). Manufactured in 2 halves that are riveted together and can
then rotate at 360 degrees.

TECHNICAL DETAIL

                                       DROP FORGED SWIVEL EN74A               DROP FORGED SWIVEL EN74-1A
PRODUCT CODE                           SW1                                                                 SW1C
SIZE                                              48.3mm                                                             48.3mm
Unit Weight                                  1.05Kg                                                              1.05Kg
Bag Quantity                                 25                                                                      25
Pallet Quantity                              1,100                                                                 1,100
Pallet Weight                                1,185Kg                                                             1,185Kg
Finish                                         Zinc Plated                                                         Zinc Plated

Quantities are indicative; weights may vary depending on container and factory loading.

A load-bearing fitting designed to connect two 48.3mm outside diameter scaffold tubes at any angle.  (SW1C)
