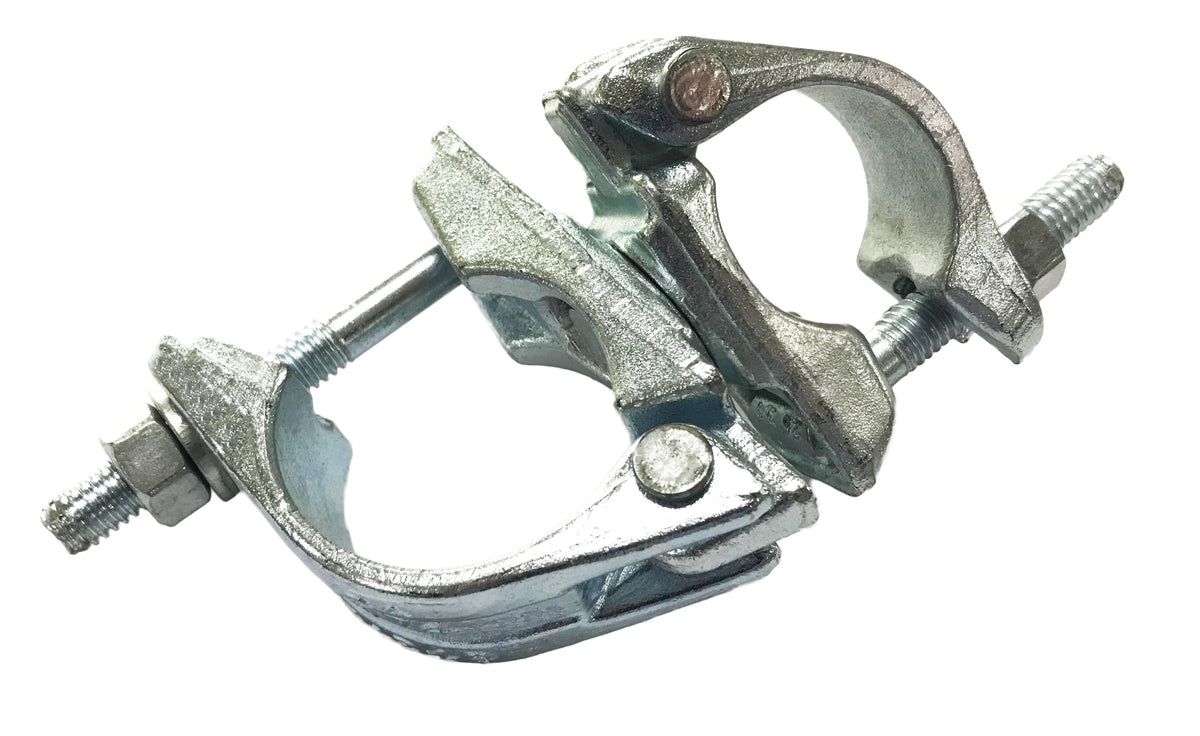

Drop Forged Prop Swivel Coupler

PRODUCT DESCRIPTION
The Drop Forged Swivel (48.3mm- 60.3mm) is a load-bearing fitting.
Designed to connect a standard scaffold tube to the outer tube on a standard
prop. The swivel element allows the joint to rotate through 360 degrees. This
creates a variable-angle joint for the purposes of bracing diagonals on a line of
props to improve the loading and stability of the props.

TECHNICAL DETAIL
PRODUCT CODE  DFPRSW1
SIZE   60.3mm x 48.3mm
UNIT WEIGHT  1.25Kg
FINISH   ZINC PLATED
Quantities are indicative; weights may vary depending on container and factory loading.
Testing Standard
EN74-2
