CPO Builders Set XL

CPO Builders Set XL

Regular price £35.37 GBP
Regular price Sale price £35.37 GBP
Sale Sold out
Shipping calculated at checkout.
Size

CPO Builders Set is trusted by the trade. Our Acrow Props and Acrow Prop Support have many uses, from supporting lintels and RSJ's to supporting load-bearing walls while new openings are formed. You can rely on our Props and Prop Support to do the job.

Acrow Props

Our Acrow Props are manufactured from heavy-duty adjustable steel and are painted with a green powder coat that protects against the elements, rust, corrosion, and general wear and tear.

Our Acrow Props have been safety and weight tested and have the certificate to prove it. We are one of very few companies who weight test, as your safety is our priority.


You have a choice of five different prop sizes, with various height ranges

Acrow Prop Size

Closed Height
(Lowest achieved when fully closed)

Open Height
(Maximum achieved when fully open)

Size 0 Prop

Size 1 Prop

Size 2 Prop

Size 3 Prop

Size 4 Prop

1.014m

1.753m

1.981m

2.590m

3.200m

1.829m

3.124m

3.352m

3.962m

4.876m



Trusted by the trade. Our Acrow Props have many uses, from supporting lintels and RSJs to supporting load-bearing walls while new openings are formed. You can rely on our props to do the job.

Our Acrow Props are manufactured from heavy-duty adjustable steel and are painted with a green powder coat that protects against the elements, rust, corrosion, and general wear and tear.

Our Acrow Props are made from high-grade steel. The outer tube diameter is 60.3mm, and uses roll threading technology for increased strength. The inner tube diameter is 48.3mm.

The threaded portion is friction welded to the outer tube, which reduces the weight but not the strength of our Prop.

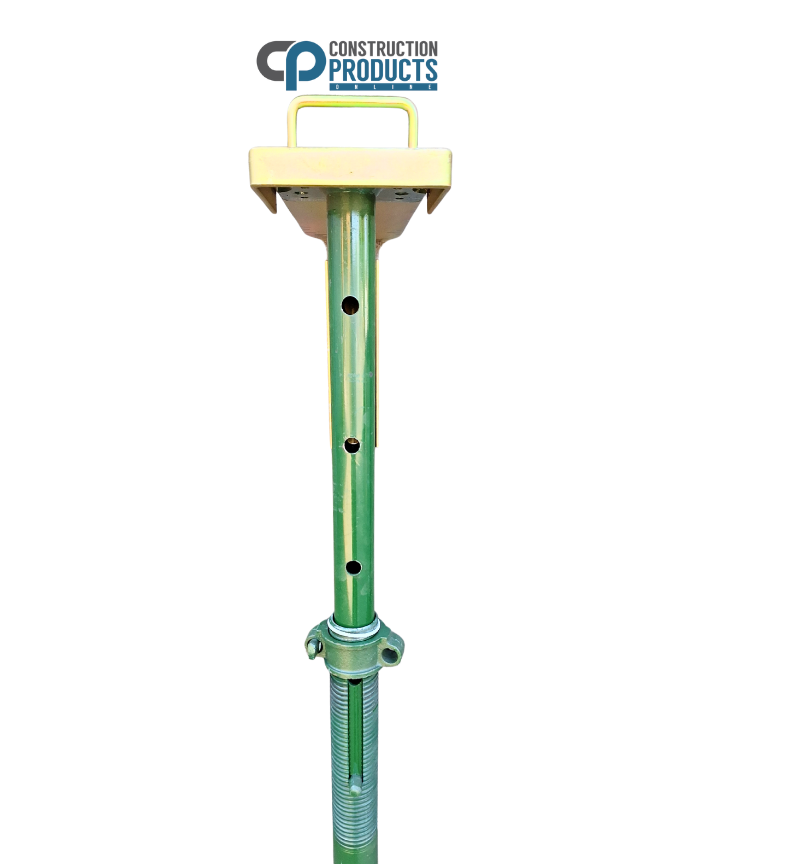

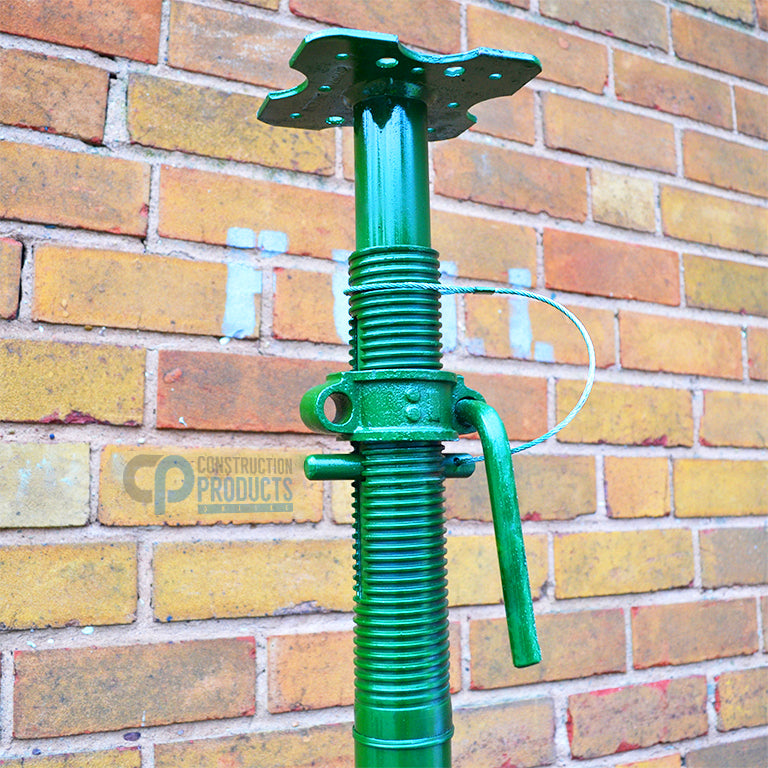

A single Acrow Prop consists of an inner and outer tube, welded base plates on the top and bottom, a collar with a handle to adjust the height, and then finished off with a pin to secure at the perfect height.

All of our Props are manufactured conforming to BS4074 and tested to BS5507, following ISO 9001:2015 quality system accreditation. This means they have been fully tested to meet all Health and Safety requirements, unlike many cheaper untested copies.

BS4074 specifies materials and dimensions for the parts of a prop and strut, as well as two alternative means for producing a suitable design, either by adherence to specified geometrical limits or by reference to minimum performance criteria.

BS5507 Specifies requirements for determining the compressive strength of props.

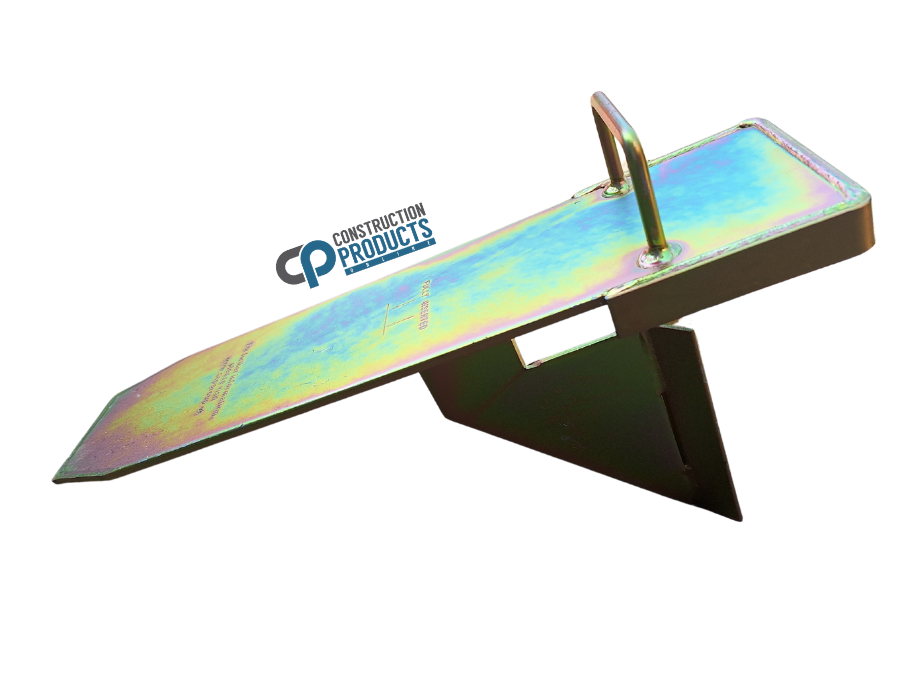

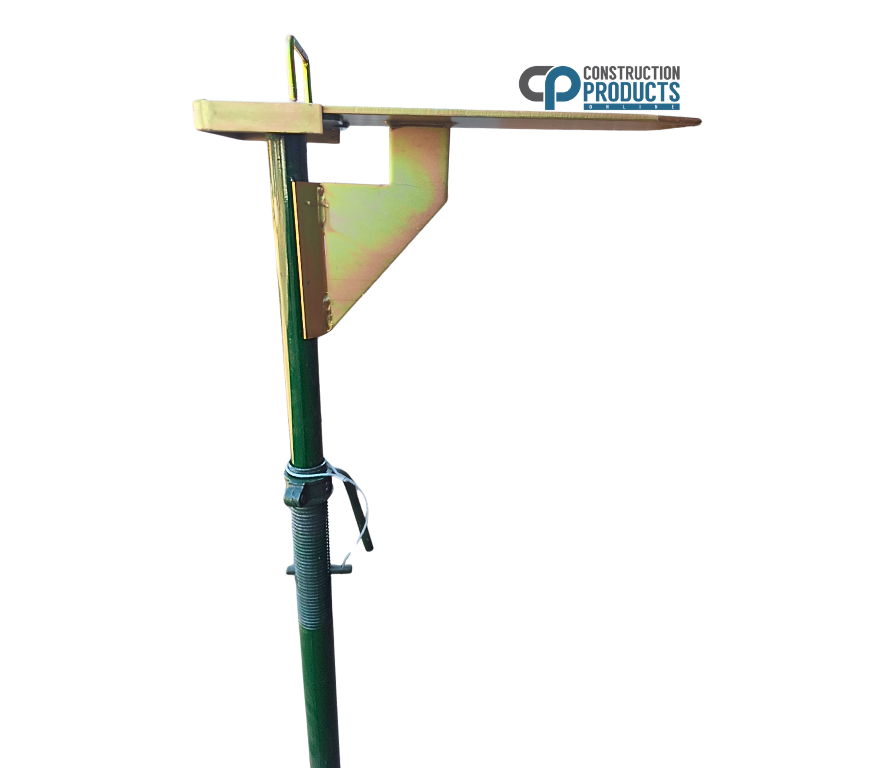

Acrow Prop Support XL

WEIGHT 9KG
LIFTING HANDLE  TOP PLATE HANDLE 10MM DIAMETER
FINISH  ZINC PLATED
WORKING PLATE THICKNESS 8MM
FULLY INSERTED DIMENSION 280MM DOUBLE SKIN
OVERALL BLADE LENGTH  560MM
TO SUPPORT WALLS UP TO  300MM
SAFE WORKING LOAD 340KG
PROP SPACING  900MM
MAXIMUM WORKING HEIGHT  3.0 METRE



ORDERS PLACED BEFORE NOON MONDAY TO FRIDAY ARE DISPATCHED THE SAME DAY. ORDERS PLACED AFTER NOON WILL BE DISPATCHED THE NEXT WORKING DAY.

ALL OF OUR PRODUCTS ARE FULLY TESTED AND CERTIFIED TO THE HIGHEST QUALITY
